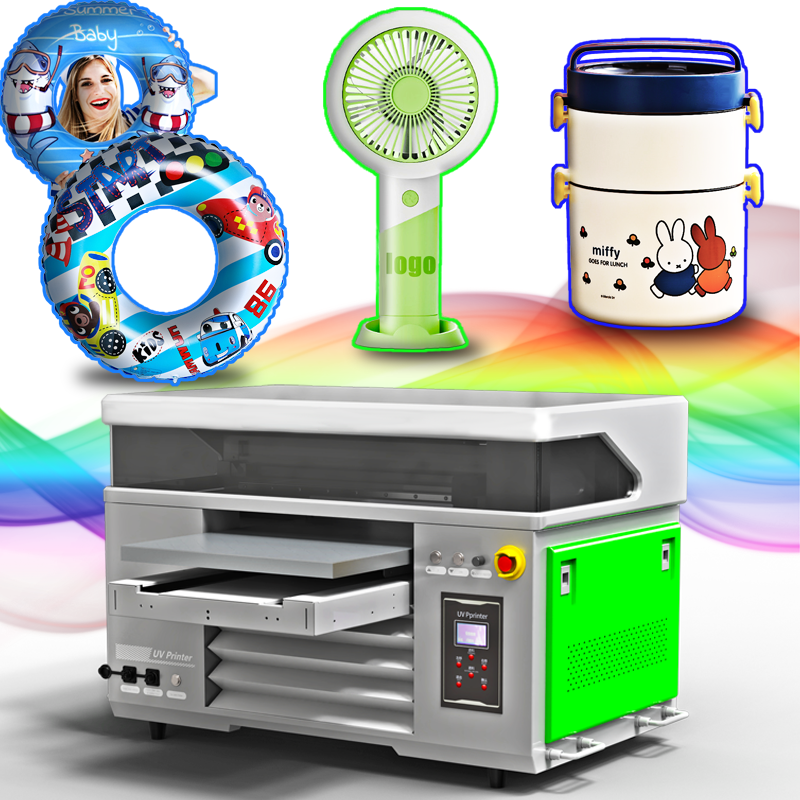

UV Printer 4060 double Epson XP600 head
UV Printer for printing on variety of materials: glass , phone case , acrylic board , id card , wood,covers, PVC, leather etc
New the latest negative pressure system ensures the stability of printing, and the almost complete absence of consumables, such as: parking caps, ink pumps, vipers
Description:
- 2pcs original Epson xp600 printhead
- printing size 40x60cm
- vacuum table with fan
- roll-ball-screw Y axis
- servo-motor X axis
- ready ICC profiles
- maximum Z axis 10cm
- one-time printing color+white+
- 3d printing + Braile
Technical parameters:
| Model |
FS-4060-xp600 |
| Printheads |
Original 2pcs Epson xp600 |
| Printer Size and weight |
101*85*58cm, 85kilo |
| Printer Resolution |
2880*720DPI |
| Max Printing Size |
40*60 cm |
| Maximum printing height |
10cm |
| Printheads scheme |
color printhead: KYCMMC, white printhead: WWWWVV (white+varnsih) |
| Capping station | Adjustable manually and from software |
| Electronics system | Hoson boards + PrintExp software |
| Printing speed | average about 0.5-1.5 sqm/hour |
| Voltage |
220v |
| Language |
English |
| Operating System |
Windows 10/11 |
| Software |
Maintop/FlexiSign Photoprint 19 (extra) |
| Integrated Design |
Integrated Design with uv system and automatic capping station |
| Platform Material |
High quality aluminium alloy + special paint |
| Servo motor |
High quality electric motor, ensure the print accuracy and stable |
| Printing Direction |
Uni and Bi-direction |
| Supper Cooling System |
Air cooling , long life of uv |
| UV Led Power |
50W adjustable |
| Life Of UV Lamp |
more than 2year |
| Work Environment |
Work Environment |
| ink Support |
UV ink (Taiwan Dongzhou) |
| Ink Color support |
CMYK + W (white) + V(varnish) |
| Firmness/stability/ |
UV-proof/WInk Supportater-proof/scratch-proof |
| Ink Level |
Environment friendly/non-mercury/non-ozone |
| Print Feature |
3D embossed effect and varnish |
| Life of Print Head |
6 to 10 months usually |
| Package included |
Ethernet cable/power cable/manual/ink adding tools |
| Shipping Type |
Dubai warehouse |
| Weight | 142kilo |
| Dimentions of wooden crate | 120х95x87cm |
